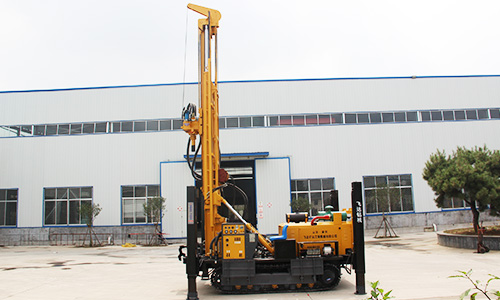

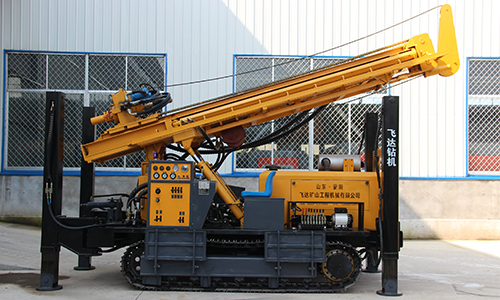

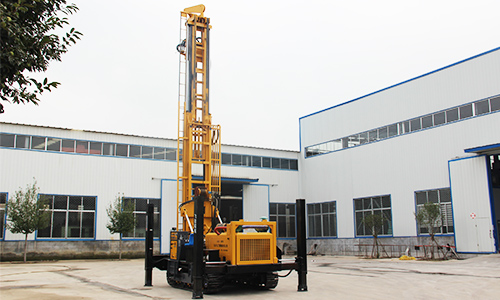

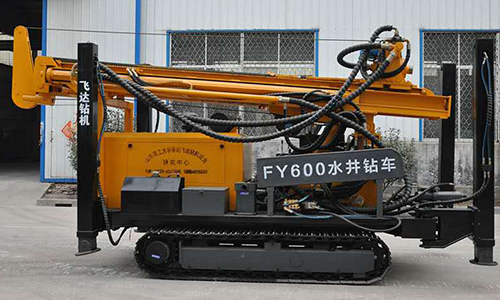

FY600 deep DTH water well drilling rig

  • Tel.: +86-371-56781209
  • Mobile:+86-15137425291
  • Fax: +86-371-68620369
  • E-mail:[email protected]
Leave Messages

1.  132kw Cummins diesel engine,  6 cylinder, powerful and good quality,
2.  It can work both air and mud drilling.
3.  Air drilling efficiency is about 30m depth per hour.
4.  Long hydraulic arms could be used to unload the drilling rig, no need crane or other device.
5.  High quality steel crawler, easy to be driven in mud drilling site.
6.  With extra winch and welder, easy to do casing drill or put casing pipe.

FY600 water well drilling rig is used for deep water well drilling, geothermal air-conditioning project and boreholes, especially applicable to mountain area and rock formation water well drilling.

Technical Parameters of FY600 Drilling Rig
Type FY600
The Weight 12T
Dimension 6200*2200*2950mm
Drilling Diameter 140-350mm
Drilling Depth 600m
One Push Length 6.6m
Driving Speed 2.5KM/H
Climbing Angles 30°
Power 132KW
Working Air Pressure 1.7-3.5MPA
Air Consumption 17-42m³/min
Drill Pipe Length 1.5m  2.0m  3.0m  6.0m
Drill Pipe Diameter 102mm 108mm 114mm
Rig Lifting Force 28T
Swing Speed 45-115 rpm
Swing Torque 8500-11000N.m
