1. It works both air and mud drilling, deal with different underground layers.
2. when works with air compressor, it can break rock 20-30m depth each hour, very efficient.

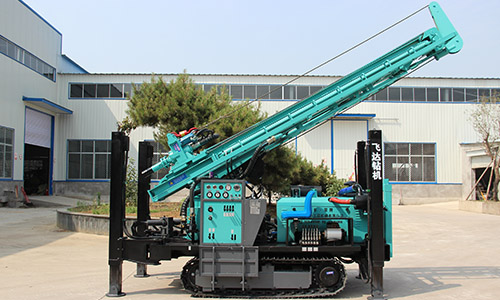

3. patented design composite boom, double cylinder lift, long stroke, large tonnage
4. one time push could be 6m, save time and labor.

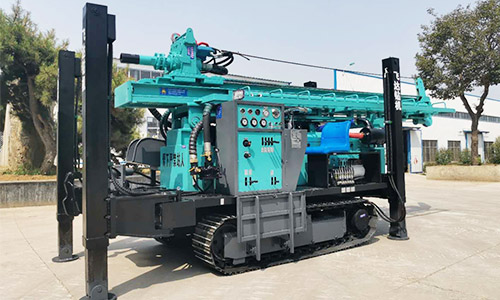

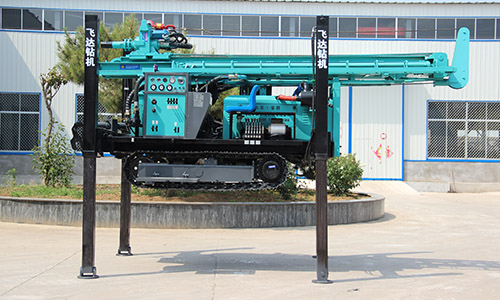

5. crawler system with long hydraulic legs, easy to be loaded and move in drilling site.
2. when works with air compressor, it can break rock 20-30m depth each hour, very efficient.
3. patented design composite boom, double cylinder lift, long stroke, large tonnage
4. one time push could be 6m, save time and labor.
5. crawler system with long hydraulic legs, easy to be loaded and move in drilling site.

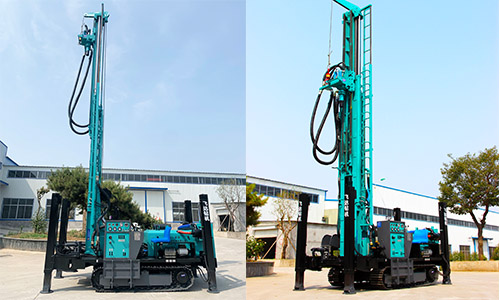

This FY280 DTH drilling rig is mainly used to drill deep water well, borehole project, construction piling and some mining project.
| SPECIFICATON OF DRILLING RIG | |
|---|---|
| >Weight | >6500 kg |
| Drilling Diameter | 140-305mm |
| Drilling Depth | 280m |
| Drilling Efficiency | 20-30m/h |
| Rotation Speed | 45-70-130rpm |
| Rotation Torque | 3700-5000N.M |
| Winch Capacity | 2.0 Ton |
| Lifting Capacity | 17 Ton |
| Lifting Speed | 8-35m/min |
| Lowering Speed | 6-19m/min |
| Reverse Thrust Capacity | 7 Ton |
| Engine Power | 70kw |
| >Engine Brand | >Yuchai |
| >Air Consumption | >17-30 m³/min |
| >Working Pressure | >1.7-3.0 Mpa |
| >One Time Push Lengh | >6m |
| >Diameter of Drilling Rod | >76mm/89mm |
| >Length of Drilling Rod | >1.5/2.0/3.0m |
| >Driving Speed | >2.5km/h |
| >Climbing Angle | align="right">30 |
| rowspan="2">Measurement | rowspan="2">5900*1750*2450mm |
