1. Resistant erode,PVC pipe has stable chemical property, which can resistant most of acid and alkali,
2. Service life long,Traditional pipe service life is 20-30 years. PVC pipe service life is at least 50 years at a set temperature and pressure.
3. Excellent sanitary performance,PVC pipe is produced by used Tin or Ca/Zn stabilizer, its sanitary performance is full according to GB/T17219 standard and Ministry of Health of the People’s Republic of China related water criterion.

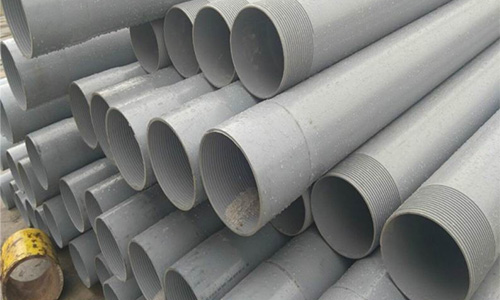

4. PVC Casing Pipe, strong resistant pressure, larger cross flowing, and is the best choice replace steel and concrete slotted (bored) pipe in many fields.
5. Easy installing,PVC Casing Pipe joint form: elastic seal ring joint, cement joint, also crew joint and flange joint. In additional, PVC-M pipe is density low, weight light, lower requirements for worker and construction equipment, construction cost also is lower compared concrete pipe, steel pipe.
6. Inside wall smooth, no furring, flowing easier, no block(n=0.008---0.009),excellent resistant bacteria. It can effectively guarantee pipes long time straightway. For turning over swash field, PVC-M pipes also easily wash clear.
PVC Casing Pipe can be used in many applications, airport, railway, highway, playground, park greenbelt protect soil wall, basement, tunnel, slope drain system. It may reduce ground water pressure, discharge superabundance water, protect soil mass and building not destroyed for seep, flowers and plant not waterlog. This project commonly is web distribution, collect together and discharg
DN(NCH) | OD(MM) | Working Pressure | Wall Thickness | Working Pressure | Wall Thickness | Working Pressure | Wall Thickness |
4“ | 110 | 1.0Mpa | 4.2mm | 1.25Mpa | 5.3mm | 1.6Mpa | 6.6mm |
4-1/2" | 125 | 1.0Mpa | 4.8mm | 1.25Mpa | 6.0mm | 1.6Mpa | 7.4mm |
5“ | 140 | 1.0Mpa | 5.4mm | 1.25Mpa | 6.7mm | 1.6Mpa | 8.3mm |
6” | 160 | 1.0Mpa | 6.2mm | 1.25Mpa | 7.7mm | 1.6Mpa | 9.5mm |
7” | 180 | 1.0Mpa | 6.9mm | 1.25Mpa | 8.6mm | 1.6Mpa | 10.7mm |
8” | 200 | 1.0Mpa | 7.7mm | 1.25Mpa | 9.6mm | 1.6Mpa | 11.9mm |
9” | 225 | 1.0Mpa | 8.6mm | 1.25Mpa | 10.8mm | 1.6Mpa | 13.4mm |
10” | 250 | 1.0Mpa | 9.6mm | 1.25Mpa | 11.9mm | 1.6Mpa | 14.8mm |
12” | 280 | 1.0Mpa | 10.7mm | 1.25Mpa | 13.4mm | 1.6Mpa | 16.6mm |
