Longer life span AKL-100L core sample drilling rig
- Tel.: +86-371-56781209
- Mobile:+86-13592609325
- Fax: +86-371-68620369
- E-mail:akldrill@hotmail.com

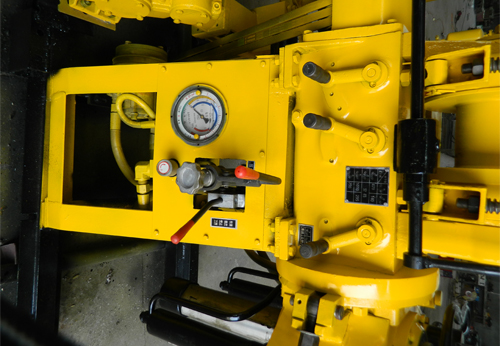

1. With hydraulic feeding device, and high drilling efficiency.
2. Close levers, convenient to operate, safe and reliable operations.
3. Light in weight, easy disassemble for transportation and applicable to working conditions in plain and mountain areas.
4. Can drill through hard rocks in lowest cost.
1. Widely used in coal mine, ore mine, energy industry and water well drilling.
2. General for investigation, geophysical exploration, core sample drilling.
3. Can be used for high-way or building construction piling work.
|
Unity machine parameter |
|
|
Drill depth (m) |
100 |
|
Maximum open hole caliber (mm) |
300 |
|
End hole caliber (mm) |
75 |
|
Drill rod caliber(mm) |
50 |
|
Drilling angle |
90~75 |
|
Drill weight(No include power) |
520kg |
|
Unity machine dimensions(m) |
2.75X0.95X1.60 |
|
Spindle |
|
|
Spindle speed(r/min) |
142.285.570 |
|
Spindle stroke(mm) |
450 |
|
Hoist |
|
|
Max. single line hoisting capacity(Kb) |
1600kb |
|
Reel lifting speed(rm/s) |
17,35,75,160 |
|
Tightrope caliber(mm) |
11 |
|
Tightrope cubic measure(mm) |
35 |
|
Hug follgate belt width(mm) |
50 |
|
Mud pump |
|
|
Type |
Horizontal single urn twin-action |
|
Displacement(L/min) |
95/77L/min |
|
Maximum pressure(Mpa) |
1.2 |
|
Work pressure(Mpa) |
0.7 |
|
Water inlet caliber(mm) |
42mm |
|
Water outlet caliber(mm) |
32mm |
|
Power |
|
|
Diesel engine(HP) |
18HP |
|
Speed limit(r/min) |
2000 |
|
Electric motor(kw) |
11 |
|
Speed limit(r/min) |
1460 |
